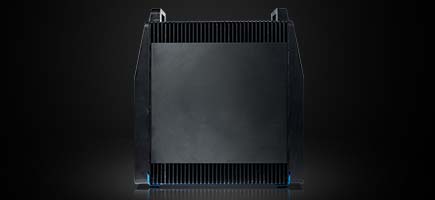

Product name:EB 18KW/24KW

Compared with traditional electronic ballast advantages of Lightstar electronic ballast:
①Flicker free high-speed camera can shoot up to 10000fps
②Constant color temperature
③The maximum output of light fluctuations≤3%
④Output power ranged from 50% to 100%of rated output power
⑤Compared with magnetic ballast the electronic ballast's optical intensity increased more than 5%
⑥The lamp's working life longer more than 20%
⑦Constant output power
⑧Compared with magnetic ballast it has smaller volume and lighter weight


MODEL NO. LEB-008
Input power 19300VA(max)26000VA(max)
Input voltage 190-250VAC
Input frequency 50/60Hz
Input current 102-77A 137-104A
Power factor cos∮≈0.98
Output power 18KW/24KW constant control
Dimming 50%-100%
Output current Square wave 50Hz、60Hz、75Hz、300Hz
Strike Cold start and hot restrike
Lihgt fluctuation ≤3%
Dimensions 390Wx595Hx550L(mm)
N.W. 70kg
IP class IP22
Compliance CE
