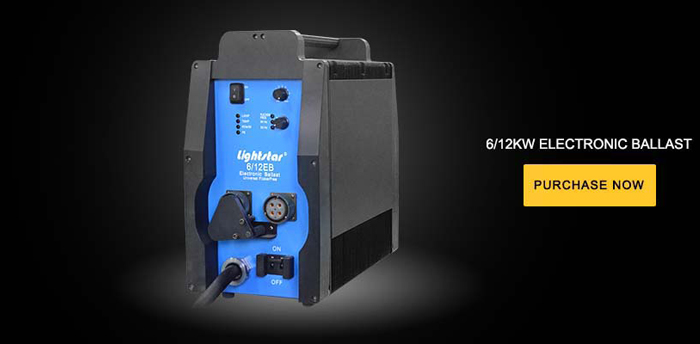

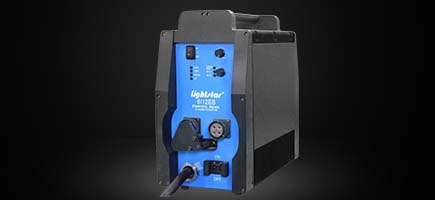

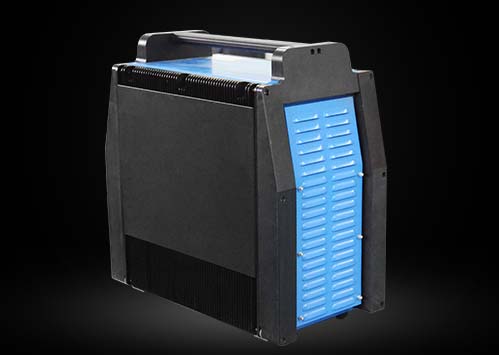

Product name:EB 6KW/12KW
Compared with traditional electronic ballast advantages of Lightstar electronic ballast: ①Flicker free high-speed camera can shoot up to 10000fps ②Constant color temperature ③The maximum output of light fluctuations≤3% ④Output power ranged from 50% to 100%of rated output power ⑤Compared with magnetic ballast the electronic ballast's optical intensity increased more than 5% ⑥The lamp's working life longer more than 20% ⑦Constant output power ⑧Compared with magnetic ballast it has smaller volume and lighter weight
MODEL NO. LEB-006 Input power 6800VA(max)13000VA(max) Input voltage 180-250VAC Input frequency 50/60Hz Input current 38-27A 72-52A Power factor cos∮≈0.98 Output power 6KW/12KW constant control Dimming 50%-100% Output current Square wave 50Hz、60Hz、75Hz、300Hz Strike Cold start and hot restrike Lihgt fluctuation ≤3% Dimensions 265Wx500Hx510L(mm) N.W. 36kg IP class IP22 Compliance CE
Manual download: ' target="_blank" title='Click on the download operation documents'>Click on the download
