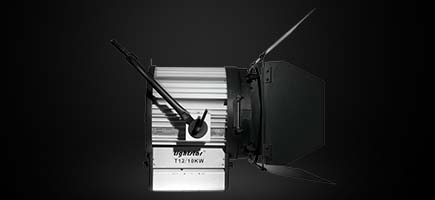

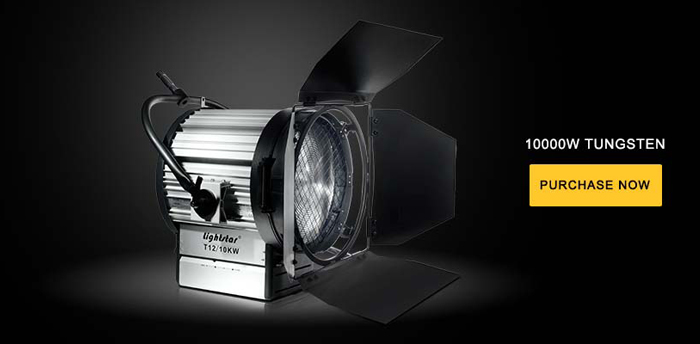

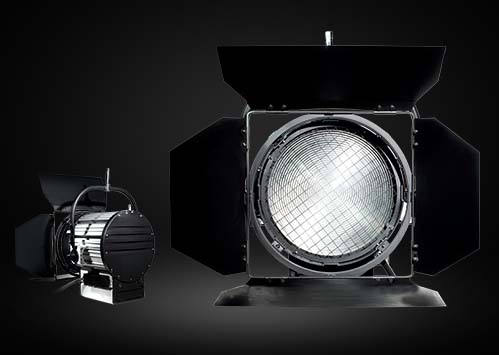

Product name：10000KW TUNGSTEN
①Aluminum alloy housing light compact and corrosion-resistant
②Focusing device and uniform beam output
MODEL NO. LSW-007B
Description 10000W Tungsten Fresnel lamp head
LAMPS
CP/85 10000W/230V/G38
CP/129MP 12000W/230V/G38
PERFORMANCE DATA
Color temperature 3200K
Dimensions 930Hx700Wx581L(mm)
N.W. 32kg
Lens diameter 420mm low expansion borosilicate fresnel lens
IP Class IP23
Compliance CE
ACCESSORIES
Barndoor 508mm
Diffuser frame 490mm
Stand LS-087
Illuminance (Lux) | |||||
No Lense | Distance | 10m | 15m | 20m | Beam angle |
Spot | Illuminance | 14750 | 6500 | 3600 | 11° |
Beam Diameter | 1.9m | 2.9m | 3.9m | ||
Flood | Illuminance | 2550 | 1100 | 300 | 52° |
Beam Diameter | 9.8m | 14.6m | 19.5m | ||
