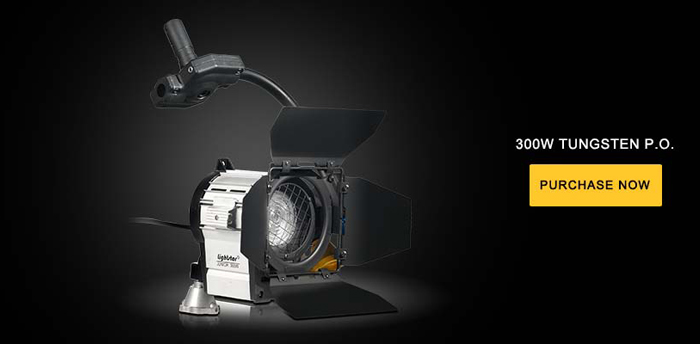

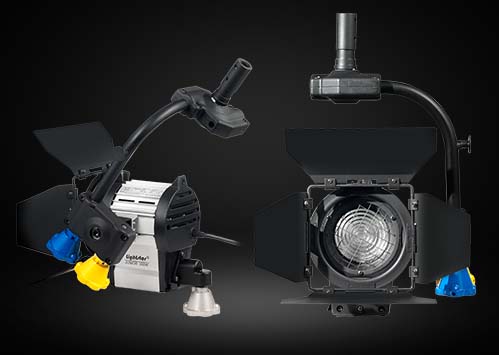

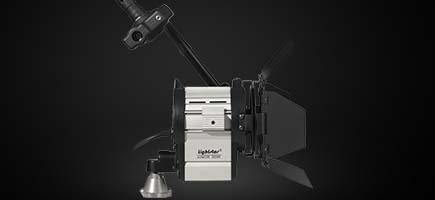

Product name：300W TUNGSTEN P.O.
Pole operation option(Operation of horizontal directionpitching directionfocusing direction)
MODEL NO. LSWK-300
Description 300W TungstenFresnel lamp headpole operated
LAMPS
CP/81 300W/500W 230V GY9.5
PERFORMANCE DATA
Color temperature 3200K
Dimensions 420Hx235Wx215L(mm)
N.W. 3.9kg
Lens diameter 80mm low expansion borosilicate fresnel lens
IP Class IP23
Compliance CE
ACCESSORIES
Barndoor 128mm
Diffuser frame 130mm
Stand NONE
Illuminance (Lux) | |||||
No Lense | Distance | 1m | 2m | 3m | Beam angle |
Spot | Illuminance | 17730 | 4433 | 1970 | 14° |
Beam Diameter | 0.2m | 0.5m | 0.7m | ||
Flood | Illuminance | 3870 | 968 | 430 | 53° |
Beam Diameter | 1.0m | 2.0m | 3.0m | ||
