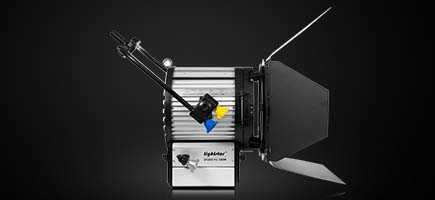

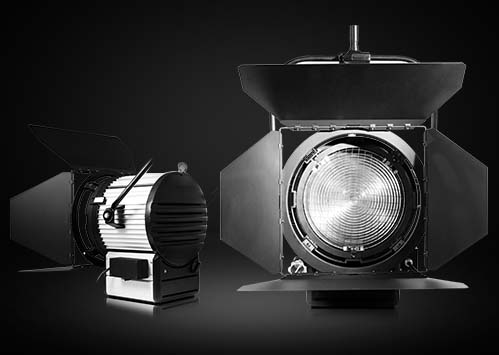

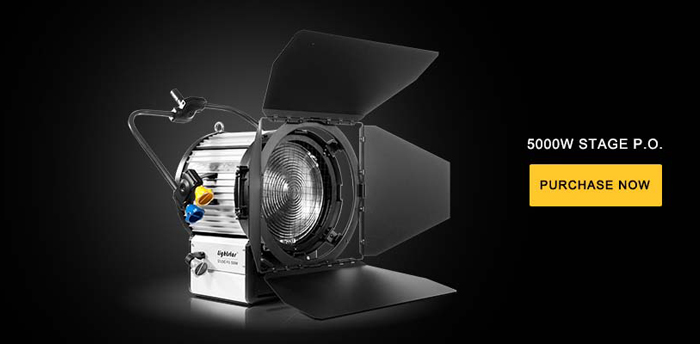

Product name：5000W STAGE P.O.
Pole operation option(Operation of horizontal directionpitching directionfocusing direction)
MODEL NO. LSWK-003
Description 5000W Stage Fresnel lamp headpole operated
LAMPS
CP/85 5000W/230V/G38
PERFORMANCE DATA
Color temperature 3200K
Dimensions 850Hx566Wx430L(mm)
N.W. 22.5kg
Lens diameter 300mm low expansion borosilicate fresnel lens
IP Class IP23
Compliance CE
ACCESSORIES
Barndoor 405mm
Diffuser frame 400mm
Stand NONE
Illuminance (Lux) | |||||
No Lense | Distance | 4m | 5m | 6m | Beam angle |
Spot | Illuminance | 18400 | 12650 | 9200 | 11° |
Beam Diameter | 4.8m | 5.4m | 6.2m | ||
Flood | Illuminance | 3910 | 2300 | 1955 | 52° |
Beam Diameter | 5.6m | 7.6m | 8.4m | ||
