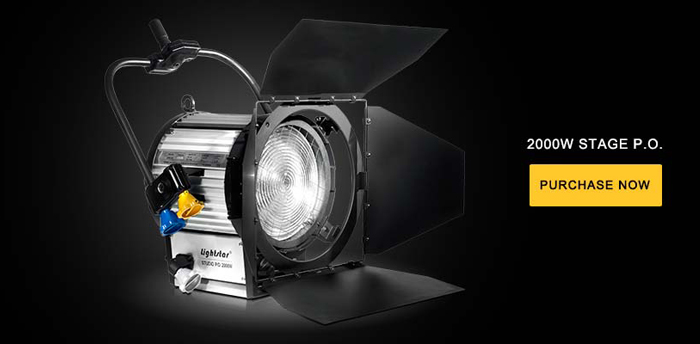

Product name：2000W STAGE P.O
Pole operation option(Operation of horizontal directionpitching directionfocusing direction)
MODEL NO. LSWK-002
Description 2000W Stage Fresnel lamp headpole operated
LAMPS
CP/73 2000W/230V/G38
PERFORMANCE DATA
Color temperature 3200K
Dimensions 711Hx468Wx385L(mm)
N.W. 17.8kg
Lens diameter 250mm low expansion borosilicate fresnel lens
IP Class IP23
Compliance CE
ACCESSORIES
Barndoor 345mm
Diffuser frame 330mm
Stand NONE
Illuminance (Lux) | |||||
No Lense | Distance | 4m | 6m | 8m | Beam angle |
Spot | Illuminance | 13469 | 5986 | 3367 | 11° |
Beam Diameter | 0.8m | 1.2m | 1.5m | ||
Flood | Illuminance | 2016 | 896 | 504 | 55° |
Beam Diameter | 4.2m | 6.2m | 8.3m | ||
