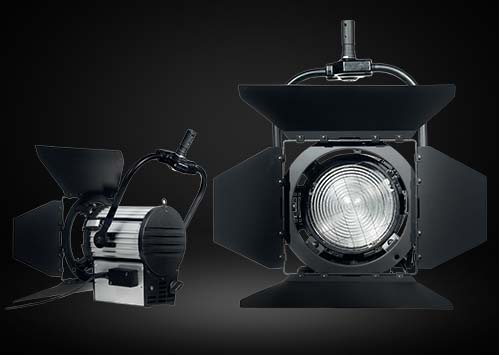

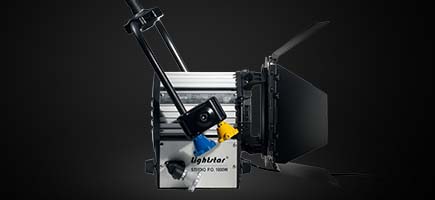

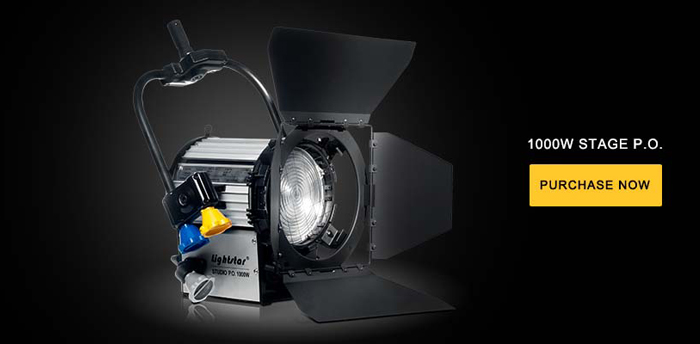

Product name：1000W STAGE P.O.
Pole operation option(Operation of horizontal directionpitching directionfocusing direction)
MODEL NO. LSWK-001
Description 1000W Stage Fresnel lamp headpole operated
LAMPS
CP/71 1000W/230V/G22
PERFORMANCE DATA
Color temperature 3200K
Dimensions 584Hx354Wx306L(mm)
N.W. 12.2kg
Lens diameter 175mm low expansion borosilicate fresnel lens
IP Class IP23
Compliance CE
ACCESSORIES
Barndoor 245mm
Diffuser frame 232mm
Stand NONE
Illuminance (Lux) | |||||
No Lense | Distance | 3m | 4m | 5m | Beam angle |
Spot | Illuminance | 17028 | 9578 | 6650 | 8° |
Beam Diameter | 0.4m | 0.6m | 0.7m | ||
Flood | Illuminance | 2028 | 1141 | 692 | 56° |
Beam Diameter | 3.2m | 4.3m | 5.3m | ||
