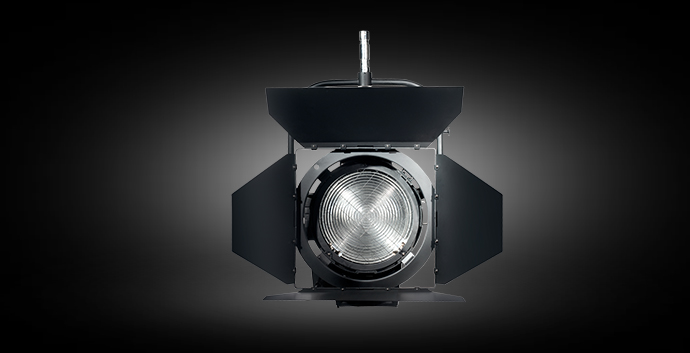

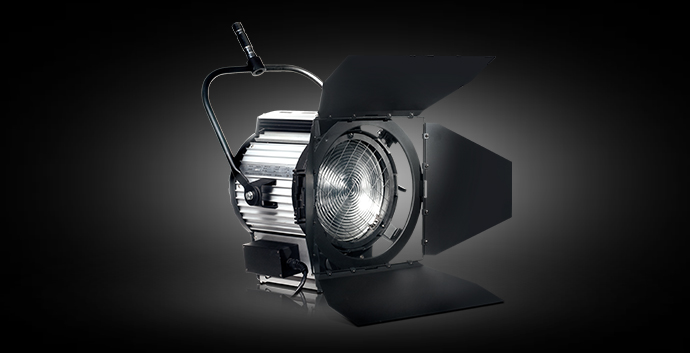

Product name：5000W Tungsten
● Lightstar Tungsten series has advantages as high lighting efficiency smaller volume portable and light. Particular wide angle fast lens can provide more light plane of illumination will be more uniform. Lightstar Tungsten series extended lamp working life due to classical antirust and corrosion-resistant structure. It is one perfect solution for application in small studios and outdoor illumination.
1.Aluminum alloy housing smaller volume light and portable high strength and corrosion-resistant material easy operation
2.Adjustable focusing knob uniform of output beam
MODEL NO. | LSW-007B |
Description | 5000W Tungsten Fresnel lamp head |
LAMPS | |
CP/85 | 5000W/230V/G38 |
PERFORMANCE DATA | |
Color temperature | 3200K |
Dimensions | 700Hx515Wx385L(mm) |
N.W. | 16.1kg |
Lens diameter | 250mm low expansion borosilicate fresnel lens |
IP Class | IP23 |
Compliance | CE |
ACCESSORIES | |
Barndoor | 345mm |
Diffuser frame | 330mm |
Stand | LS-6 |
Illuminance (Lux) | |||||
No Lense | Distance | 4m | 5m | 6m | Beam angle |
Spot | Illuminance | 14950 | 10350 | 7245 | 11° |
Beam Diameter | 4.2m | 5.6m | 6.9m | ||
Flood | Illuminance | 4600 | 2990 | 2070 | 52° |
Beam Diameter | 6m | 8.2m | 10.5m | ||
