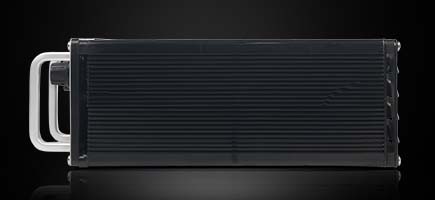

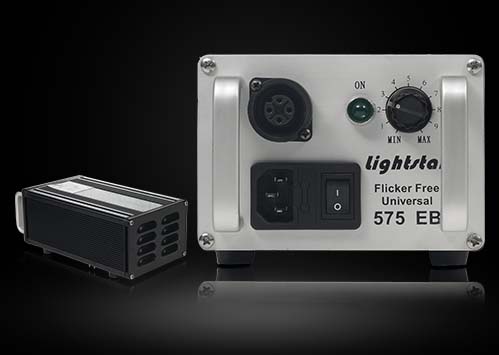

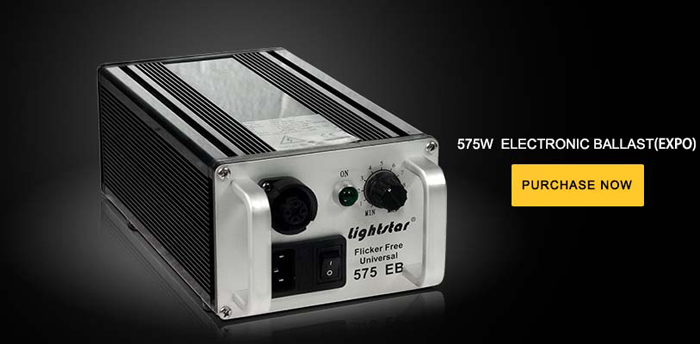

Product name:EB 575W (EXPO)

Compared with traditional electronic ballast advantages of Lightstar electronic ballast:
①DC supply
②Constant output power
③Flicker free high-speed camera can shoot up to 10000fps
④Constant color temperature
⑤The maximum output of light fluctuations≤3%
⑥Output power ranged from 50% to 100%of rated output power
⑦Compared with magnetic ballast the electronic ballast's optical intensity increased more than 5%
⑧The lamp's working life longer more than 20%
⑨Compared with magnetic ballast it has smaller volume and lighter weight


MODEL NO. LEB-002EX
Input power 640VA(max)
Input voltage 90-250VAC;180-250VAC
Input frequency 50/60Hz
Input current 7.1-5.2A;3.5-2.5A
Power factor cos∮≈0.98
Output power 575W constant control
Matched power NONE
Dimming 50%-100%
Output current Square wave 120Hz
Strike Cold start and hot restrike
Lihgt fluctuation ≤3%
Dimensions 130Wx96Hx240L(mm)
N.W. 3kg
IP class IP22
Compliance CE
