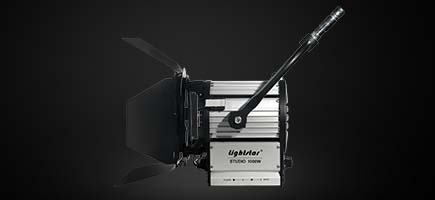

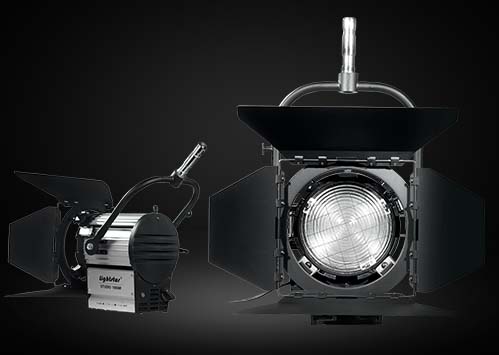

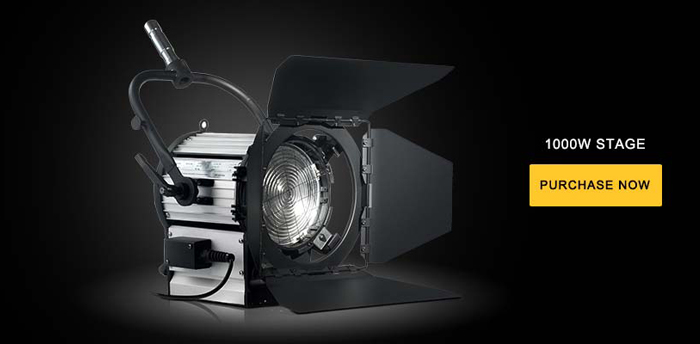

Product name：1000W STAGE
①Studio series lights
②Flood output
MODEL NO. LSWD-001
Description 1000W Stage Fresnel lamp head
LAMPS
CP/85 1000W/230V/G22
PERFORMANCE DATA
Color temperature 3200K
Dimensions 562Hx362Wx306L(mm)
N.W. 9kg
Lens diameter 175mm low expansion borosilicate fresnel lens
IP Class IP23
Compliance CE
ACCESSORIES
Barndoor 245mm
Diffuser frame 232mm
Stand LS-5
Illuminance (Lux) | |||||
No Lense | Distance | 3m | 4m | 5m | Beam angle |
Spot | Illuminance | 17028 | 9578 | 6550 | 8° |
Beam Diameter | 0.4m | 0.6m | 0.7m | ||
Flood | Illuminance | 2028 | 1141 | 692 | 56° |
Beam Diameter | 3.2m | 4.3m | 5.3m | ||
