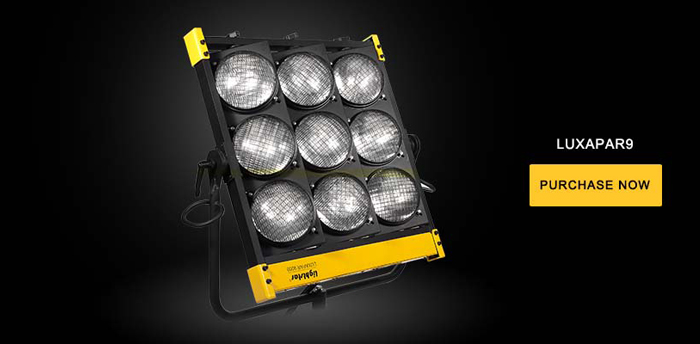

Product name：LUXAPAR 9

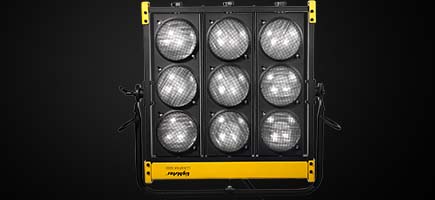

①Matrix array design
②Individual switch control
③Angle free for every row output direction
④Mutiple combination of fixture
MODEL NO. LUPT-009
Description 9x1000W/PAR64 lamp/MAX40.1A
LAMPS 1000W/230V/GX16D

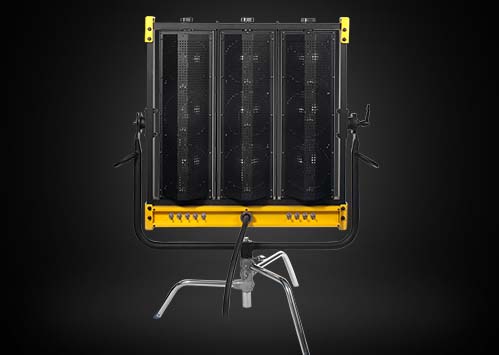

ACCESSORIES Stand
PERFORMANCE DATA
Color temperature 3200K
Dimensions 1089Lx990Wx187H（mm）
N.W. 30.2kg
Socket GX16D
Switch 24 switches for each lamp
Beam control 360° direction adjustable
Surface Black/Yellow powder coating
IP Class IP23
Compliance CE
Illuminance (Lux) | |||||||||
Color Temp | Globe code No. and Beam Pattern | 6m | 9m | 12m | 15m | 22.5m | 30m | 45m | |
3200 | FFN Very Narrow Spot | LightF.C.Light Area | 10000 1.4x0.9 | 4500 2.1x1.3 | 2530 2.8x1.8 | 1620 3.5x2.3 | 720 5.3x3.5 | 405 7x4.5 | 180 11x6.8 |
FFP Narrow Spot | LightF.C.Light Area | 8100 1.6x1 | 3600 2.4x1.5 | 2025 3.2x2 | 1300 4x2.6 | 575 6x3.8 | 325 8x5.1 | 145 12x7.7 | |
FFR Medium Flood | LightF.C.Light Area | 3040 3x1.4 | 1350 4.6x2.1 | 760 6.2x2.8 | 485 7.7x3.5 | 215 12x5.4 | 120 16x7.1 | 55 23x11 | |
FFS Wide Flood | LightF.C.Light Area | 1010 6x2.8 | 450 8.1x4.2 | 255 11x5.6 | 160 14x7 | 70 20x11 | 40 27x14 | 20 40x21 | |
White | FGM Narrow Spot | LightF.C.Light Area | 5175 1.6x0.9 | 2300 2.4x1.4 | 1295 3.2x1.8 | 830 4x2.3 | 370 6x3.5 | 210 7.9x4.6 | 90 12x6.9 |
FGN Medium Flood | LightF.C.Light Area | 1800 3x1.4 | 800 4.5x2.1 | 450 6x2.8 | 290 7.5x3.5 | 130 11x5.4 | 70 15x7.1 | 30 23x11 | |
