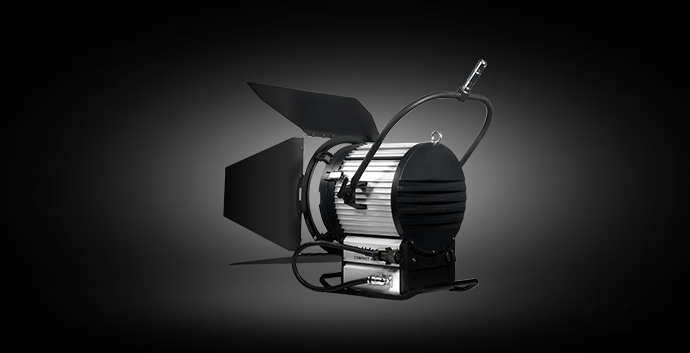

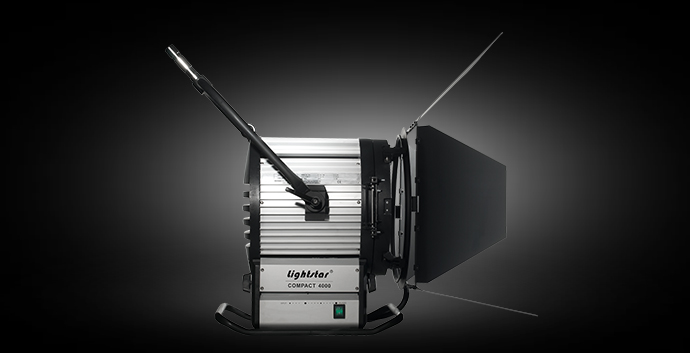

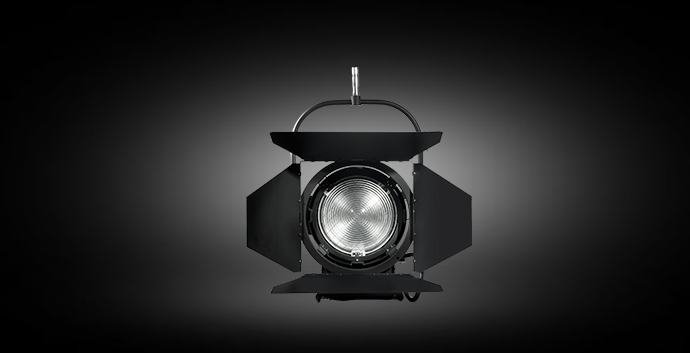

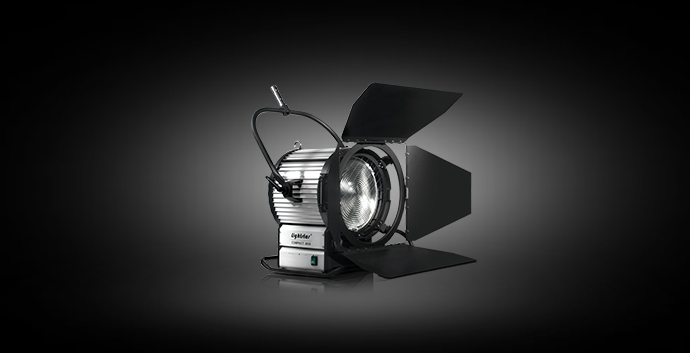

Product name：4000W HMI Fresnel
● Lightstar HMI Fresnel used the best quality reflector and lens for offering the high quality output spectrum. HMI Fresnel is common to use in TV Play Film and Theatre due to high quality cooling system design and hi efficiency illumination.
①Corrosion-resistant and high-strength aluminum material light and portable better heat dissipation
②Special optical system improved efficiency of output beam
③HMI lamp head energy saving long working life
④Adjustable lamp holder easy operation
⑤Color temperature stability high index CRI
MODEL NO. | LSC-005 |
Description | 2500W single-ended, Fresnel lens |
LAMPS | |
HMI | 2500W/115V/G38 |
PERFORMANCE DATA | |
Color temperature | 5600K |
Dimensions | 792Hx610Wx480L(mm) |
N.W. | 25kg |
Lens diameter | 300mm, low expansion, borosilicate Fresnel lens |
IP Class | IP23 |
Compliance | CE |
ACCESSORIES | |
Barndoor | 405mm |
Scrim | 395mm |
Stand | LS-087 |
Electronic Ballast | EB 2500W/4000W |
Extension cable | 7.5m or 15m extension cable with Veam connectors |
Illuminance（Lux） | |||
Distance（m） | 10 | 15 | 20 |
Spot 7° | |||
Illuminance | 21250 | 9445 | 5313 |
Beam Diameter（m） | 1.2 | 1.8 | 2.4 |
Flood 60° | |||
Illuminance | 1750 | 778 | 438 |
Beam Diameter（m） | 11.5 | 17.3 | 23 |
