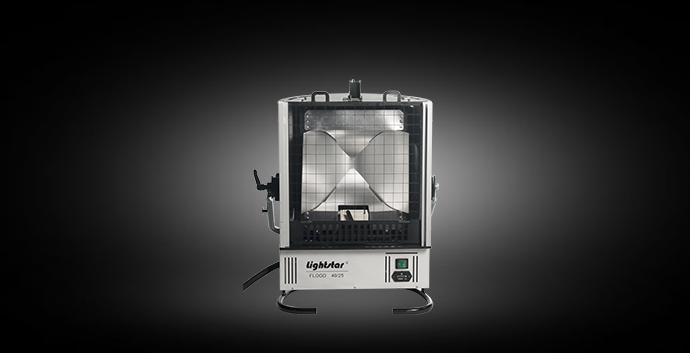

Product name：2.5KW/4KW FLOOD LIGHT
● Lightstar 2.5kw/4kw flood light series are mainly application in film illumination and daylight simulation. Lightstar used technology of thermo-plastic housing and corrosion-resistant aluminum internal housing for improving heat resistant system during working time. Flood light has reflector and optical lens with smart system for providing illumination intensity maximum.
①Beam angle of special reflector> 120 lighting effect smoothly larger coverage area
②Aluminum alloy housing corrosion-resisting higher efficiency of heat dissipation light and portable
③Two different sizes of focusing bulbs meet various requirements
④Adjustable lamp holder
MODEL NO. | LSCF-004 |
Description | Flood light |
LAMPS | |
HMI | 2500/4000SE |
PERFORMANCE DATA | |
Color temperature | 5600K |
Dimensions | 635Hx590Wx290L(mm) |
N.W. | 22kg |
Lamp | HMI 2500/4000SE |
Lampholder | G38 |
ACCESSORIES | |
Barndoor | 415x415mm |
UV lens | 395x340(mm) |
Stand | LS-6 |
Electronic Ballast | EB 2.5KW/4KW,180-250VAC |
Extension cable | 7m or 15m extension cable with Veam connector |
Illuminance（Lux） | |||
Distance（m） | Spot | Illuminance | Beam Diameter （m） |
3 | 2500W lamp 130° | 4486.9 | 13.1 |
4.6 | 1990.6 | 19.6 | |
6.1 | 1119.0 | 26.2 | |
7.6 | 720.9 | 32.7 | |
9.1 | 494.9 | 39.2 | |
