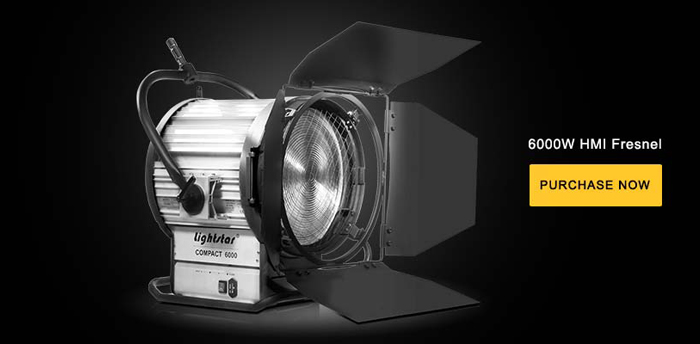

Product name：6000W HMI Fresnel
①Aluminum alloy casting light corrosion-resistant better heat dissipation
②Highter effcicency of beam output by professional optical design
③HMI lamp long working life
④Stability of color temperature and high CRI
⑤Adjustable lamp holder and easy to operation
MODEL NO. LSC-006
Description 6000W single-ended Fresnel lens
LAMPS
HMI 6000W/125V/G38
PERFORMANCE DATA
Color temperature 5600K
Dimensions 930Hx700Wx615L(mm)
N.W. 38.5kg
Lens diameter 420mm low expansion borosilicate Fresnel lens
IP Class IP23
Compliance CE
ACCESSORIES
Barndoor 508mm
Scrim 496mm
Stand LS-087
Electronic Ballast EB 6KW; EB 6KW/9KW; EB 6KW/12KW
Extension cable 15m extension cable with Veam connectors
Illuminance（Lux） | |||
Distance（m） | 10 | 15 | 20 |
Spot 6° | |||
Illuminance | 42500 | 18890 | 10625 |
Beam Diameter（m） | 1.0 | 1.6 | 2.1 |
Flood 58° | |||
Illuminance | 2650 | 1178 | 663 |
Beam Diameter（m） | 11.1 | 16.6 | 22.2 |
