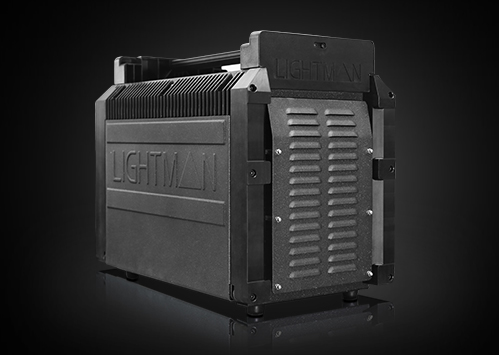

Product name：6/9KW ELECTRONIC BALLAST
● Lightman electronic ballast is hi-efficiency stable structure easy to fix up low noise.，output frequency ranges 50Hz to 300Hz to meet flicker-free need for hi-speed camera.
① Modularization design automatic self-fault recognition that makes LIGHTMAN more convenient
② Flicker freehigh-speed camera can shoot up to 10.000fps;1000Hz with fine adjustment created better luminous efficacy
③ Superposition design easy for storage
④ Constant color temperature
⑤ Constant output power
⑥ The maximum output of light fluctuations ≤3%
⑦ Output power ranged from 50% to 100% of rated output power
⑧ The lamp’s working life longer more than 20%
⑨ DMX 512 control
⑩ Compared with magnetic ballastit has smaller volume and lighter weight
MODEL NO. LMEB-060
Input power 11200VA（max）
Input voltage 180-250VAC
Input frequency 50/60Hz
Input current 56-44A
Power factor cos∮≈0.98
Output power 6000W/9000W constant control
Matched power Identifying automatically 6KW or 9KW lamphead
Dimming 50%-100%
Output current Square wave 50Hz、60Hz、75Hz、300Hz、1000Hz
Strike Cold start and hot restrike
Lihgt fluctuation ≤3%
Dimensions 451Wx254Hx408L（mm）
N.W. 28kg
IP class IP22
Compliance CE
