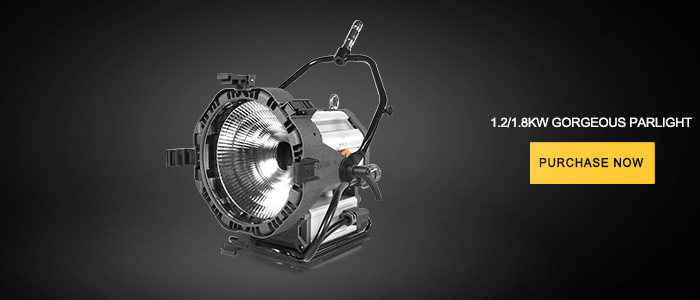

  • Product name:1.2/1.8KW GORGEOUS PARLIGHT
    ● Lightman employs multiple-mirror reflection which combines Fresnel lens and parabolic reflector. Gorgeous Parlight doesn't require external lenses.Original octangle structural design.
    ① Original octagon structure design make the LIGHTMAN series own good appearance and effective heat dispersion at the same time it creates the conditions for excellent luminous efficacy ② Focusing spot and flood smoothly by special mutiple-mirror reflector ③ Aluminum alloy casting light corrosion-resistant and heat-resistant ④ No external lenses required for spot and flood

    MODEL NO.

    LMGP-018

    Description

    1.2KW/1.8KW,UV lens

    LAMPS

    HMI

    1.2KW/1.8KW 100V/128V G38/G38
    PERFORMANCE DATA
    Color temperature5600K
    Dimensions705Hx485Wx490L(mm)
    N.W.16kg
    UV LensΦ285mm
    IP ClassIP23
    ComplianceCE
    ACCESSORIES

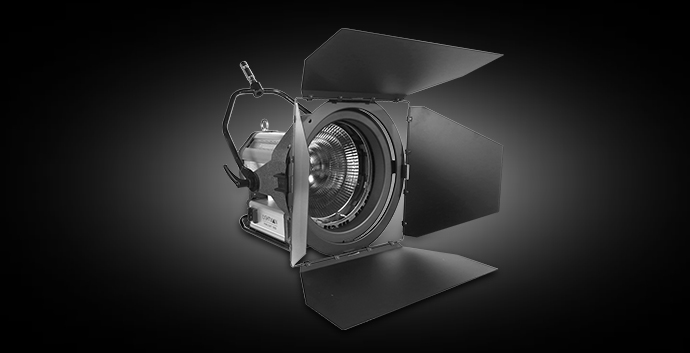

    BarndoorΦ381mm
    Diffuser frameNONE
    StandLS-05
    Electronic BallastLIGHTMAN EB 575W/1200W/1800W
    Extension cable7.5m or 15m extension cable with Veam connector

    Photometric Data with 1800W Lamp

    Throm(M)

    5

    10

    15

    Spot:10°

    Output (Lux)

    19100

    6723

    3612

    Diameter(m)

    2

    3.5

    5

    Medium:40°

    Output (Lux)

    6330

    2820

    1556

    Diameter(m)

    4

    7

    10

    Flood:60°

    Output (Lux)

    3050

    1232

    680

    Diameter (m)

    7

    11

    16
