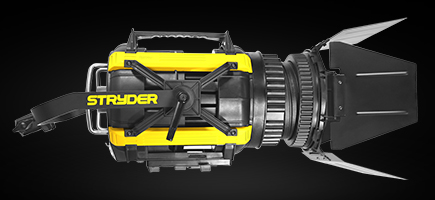

Product name：LEDLITE-BS200pro
● Lightstar LED outputs hi-efficiency and hi-quality light and creates a new revolutionary age of light.Lightstar LED fixture adopts advanced LED optical technologyapplying in filmTV drama seriesand events.
①High CRI≥92，stability of color temperature
②Standard of color temperature :2800K-6500K
③DMX control

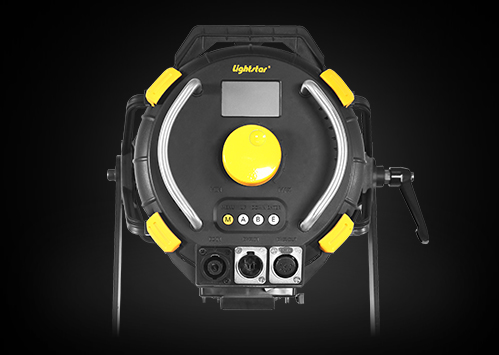

④LCD soft ware controlversatility and easy operation
⑤Long working lifecooling system efficiency≥95%low luminous decay
⑥TLCT＞90%
⑦The ability to spot and flood
MODEL NO. | LEDLITE200pro |
Description | 300W |
Rated input | 12V-15V |
Color temperature | 2800K-6500K |
Dimensions | 340Hx290Wx380L(mm) |
N.W. | 3.7kg |
Lens diameter | First stage：φ120mm Second stage：φ140mm |
IP Class | IP22 |
Barndoor | 195mm |
Stan | LS-4 |
| Distance | 2m | 3m | 4m | Beam angle | ||
| Spot |
| Illuminance（Lux） | 11800 | 5000 | 2900 | 16° |
| Beam Diameter | 0.5m | 0.8m | 1.2m | |||
5600K | Illuminance（Lux） | 16000 | 6600 | 3800 | ||
| Beam Diameter | 0.5m | 0.8m | 1.2m | |||
| Flood | 3200K | Illuminance（Lux） | 1250 | 530 | 300 | 60° |
| Beam Diameter | 2.4m | 3.5m | 4.2m | |||
5600K | Illuminance（Lux） | 1650 | 730 | 420 | ||
| Beam Diameter | 2.4m | 3.5m | 4.2m | |||
