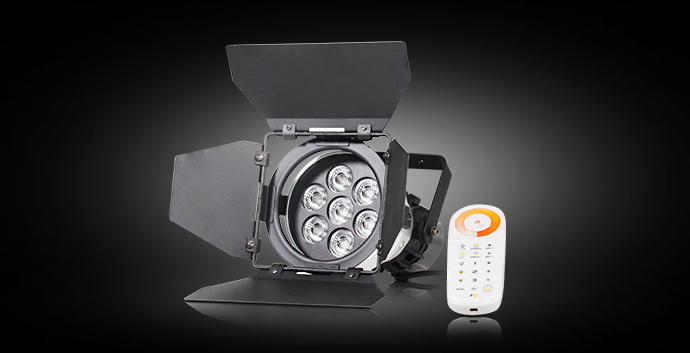

Product name：【LED】LEDLITE35
● The new line products-Lightstar LED apparatuses integrated with advanced LED optical technology in film TV play auto show and exhibition illumination projects. Lightstar LED apparatuses realized high illumination and high CRI through innovative design leaded into a changing era of high efficiency illumination.
①Aluminum alloy housing
②Light and portable easy installation and carrying
③Adjustable color temperature from 2700k to 6000k
④Remote control
SERIES NO. | LUXED-S |
LAMPS | 35W LED ,Fresnel |
Rated input | 35W 100-230VAC |
Color temperature | 2700K-6000K |
Dimensions | 237Hx165Wx240L (mm) |
N.W. | 3.0kg |
Lens diameter | 135mm |
IP Class | IP23 |
Compliance | CE |
Barndoor | 168mm |
Diffuser frame | NONE |
Stand | LS-2 |
Illuminance（Lux） | |||||
No lense | Distance | 2m | 3m | 5m | Beam angle |
Spot | Illuminance | 3215 | 1420 | 497 | 11° |
Beam Diameter | 1.6m | 2.4m | 4m | ||
Flood | Illuminance | 2417 | 975 | 318 | 55° |
Beam Diameter | 1.6m | 2.4m | 4m | ||
